WORLD-CLASS FM PERFORMANCE

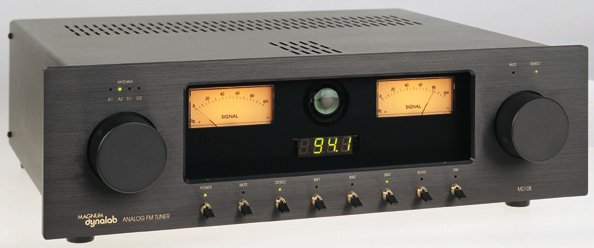

Designed and constructed with the music lover in mind, the MD 108T is a hybrid tuner utilizing a truly new ANALOG R.F. section with precise MAGIC EYE tube tuning and a separate audio stage developed to exacting standards, utilizing two 12 AX 7 tubes in the audio switching stage.

ADVANCED R.F. FEATURES

	Quad MATRIX EYE Tube Tuning		Five Stage Front End
	Three Ultra-Sensitive Bandwidth Settings		Two Antenna Inputs
	Low Noise Dual gate MOSFETS		Hand Matched Resonators

A precision tuning pot ensure optimum resolution from the five stage varactor front end. With three ultra-sensitive bandwidth setting and enhanced selectivity, you are ensured the best possible signal from any of the four antenna inputs (two analog, two digital), each selected from the front panel. An exclusive muting circuit eliminates unwanted inter-station noise. To verify performance, the MD 108 employs two accurately calibrated taut band analog meters to indicate multipath and signal strength. In unison with these meters, a unique quad MATRIX EYE tube for centre tuning means there is little guess work in optimizing FM reception. Low noise dual-gate MOSFET transistors and hand matched resonators mated to double-sided, plated circuit boards provide peak performance. The logic circuit which controls the tuner operation uses C-MOS technology, which has very high noise immunity making external transients of little impact. The logic circuit is controlled by gold plated momentary switches. With the switches always in a uniform position, the MD 108 maintains a clean, aesthetically pleasing appearance.

Not to be outdone by the specially designed front end, a separate CLASS A audio stage was designed. Using components and technology, worthy of the signal being received from the front end, the audio stage, using two 12 AX 7 tubes in the final stage and a discrete amplification system is designed to capture the ambiance of the music. The BALANCED circuit using a pair of bi-polar low noise transistors are cross coupled to ensure a precise BALANCED signal to match your other higher performance components. The Magnum Dynalab MD 108 establishes the new benchmark by which all other tuners will be judged.

PRICE

$8,500 US Funds

SPECIFICATIONS
Usable Sensitivity-Mono	0.7 uV 9.0 dBf
50 dB quieting-Mono	2.0 uV 9.9 dBf
50 dB quieting-Stereo	2.3 uV20.0 dBf
Capture Ratio	1.5 dB
Image Rejection	125.0 dB
Signal to Noise Ratio	80.0 dB
Alternate Channel Attenuation - WIDE	46.0 dB
Alternate Channel Attenuation - NARROW	60.0 dB
Alternate Channel Attenuation - SUPER NARROW	80.0 dB
Adjacent Channel Attenuation - WIDE	3.0 dB
Adjacent Channel Attenuation - NARROW	21.0 dB
Adjacent Channel Attenuation - SUPER NARROW	48.0 dB
THD - Mono	0.10%
THD - Stereo	0.10%
Stereo Separation	50.0 dB
AM suppression	70.0 dB
SCA rejection	80.0 dB
I.F. Rejection	125.0 dB
19 Khz and 38 Khz component rejection	75.0 dB
Audio frequency response (=/- 1dB)	15 Hz - 17 Khz
Balanced Audio Output	2.2 V
Line Audio Output	1.0 V
Line power (must be specified)	120, 220, 230, 240 Vac
Dimensions (inches HWD)	5 x 19 x 16
Dimensions (cm HWD)	12.8 x 48.3 x 40.7
Weight (lbs/Kg)	40/17.7
Power Consumption (Typ./Max)	50 W / 100

Magnum Dynalab reserves the right to change or modify the specifications without notice.

MAGNUM DYNALAB LIFETIME SERVICE COMMITMENT

Magnum Dynalab, the standard for FM tuners in the70's, 80's, 90's, continues to lead into the new millennium. We pride ourselves on offering products of exceptional build quality without obsolescence. Magnum Dynalab is committed to offering our customers service excellence worthy of your investment, regardless of the age of your product.

Magnum Dynalab factory warranty for tuners is 2 years parts and labor. (Vacuum tubes 1 year.) Our policy is a lifetime service commitment to our customers. A $75 flat rate fee (plus shipping) for any required service for the life of any Magnum Dynalab tuner.

Aftermarket modifications done to our tuners by unauthorized technicians will void any warranties and our lifetime service commitment. Additional service charges will apply under these circumstances.
