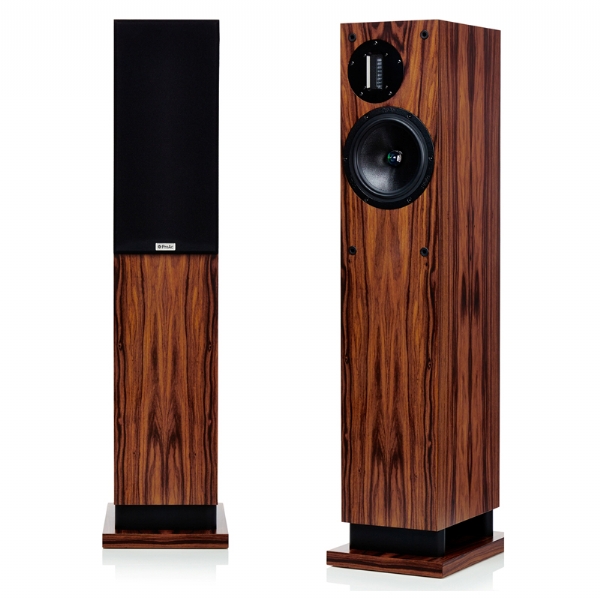

PROAC RESPONSE D20R
Product Description
The D20R features a new cabinet with bass loading used in D48 model. A new crossover network and a ProAc ribbon tweeter as used in the D30RS, D40R and K6. The result is a wonderful open and expansive midrange with a substantial bass, ProAc's ribbon tweeter giving sweet and detailed high frequencies, a large sound stage is also a bonus.
Nominal Impedance: 8 ohms
Recommended Amplifiers: 20 to 180 watts
Frequency Response: 28Hz to 33KHz
Sensitivity: 88.5 dB 1 watt at 1 metre
Bass Driver: 6.5" (165mm) ProAc unit fitted features glass fibre weave cone, Excel Magnet system and unique acrylic damping phase plug.
Tweeter: ProAc ribbon 60mm by 10 mm as light as a human hair, with rear chamber damping.
:rossover: Finest components on dedicated circuit board. Multi-strand oxygen free copper cable throughout. Split for optional bi-wiring or bi-amplification.
Dimensions: Height: 38.4" (960mm) plus Spikes, Width: 7.6" (190mm): Depth, 9.1" (227mm)
Plinth: : Width: 9.2" (230mm), Depth: 13.6" (305mm)
Weight: 26Kg each, 58 lbs. each
